CKD Blister Pack FBP-300W

Product introduction

FBP-300W maintains Japanese quality and provides high-quality products with good cost performance.Global specifications and functions were selected carefully and prepared in FBP-300W. ”FBP-300W” is a global model by CKD that has the top market share in Japan.

Applicable products

tablet / capsule

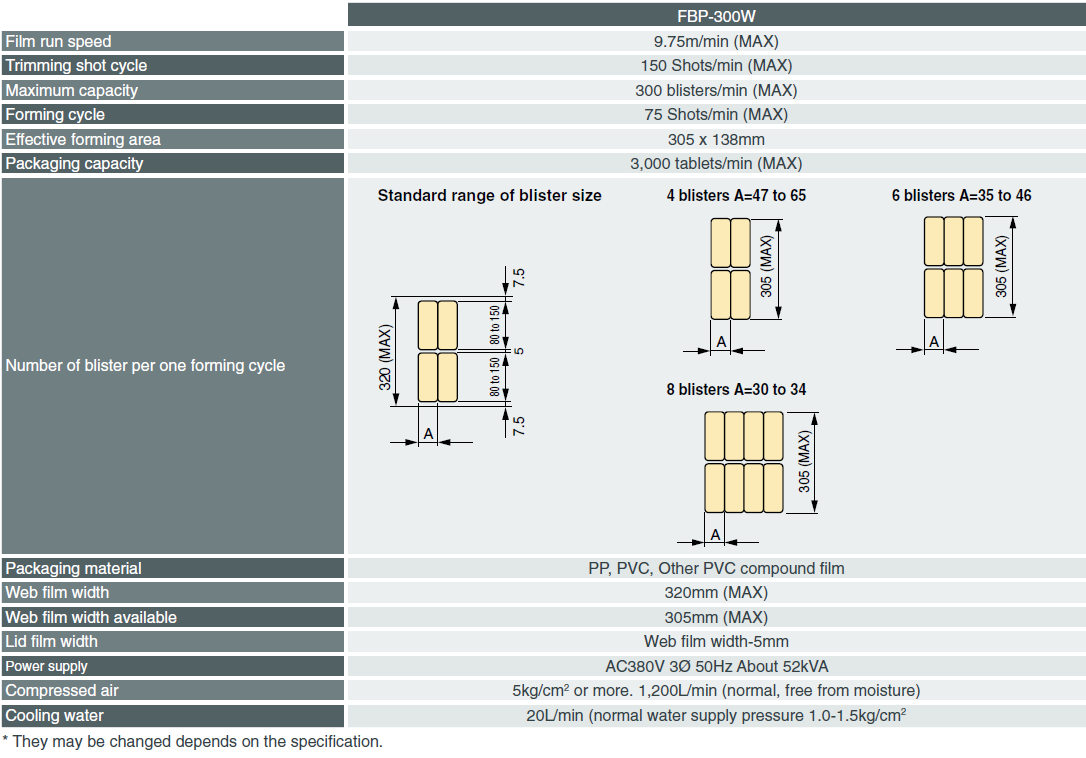

Detail drawing

View big picture

Product features

（1）Safety

Cover with an internal lock to shut the power source
Foolproof control
Well-reproducible mold parts

（2）Design

Covers with frame-less design
Well-workable height of the feeding rail based on human engineering
Flat design for GMP

（3）Best package

Standard specification with good cost performance
Optimum systems for customers to select from various options

• For both AL/AL product and plastic film product

• Three-class authentication

• Film auto-splicing unit • Slitting unit

• Pitch controlling unit • Powder correcting unit

• Meandering correction unit • 2 roll spool

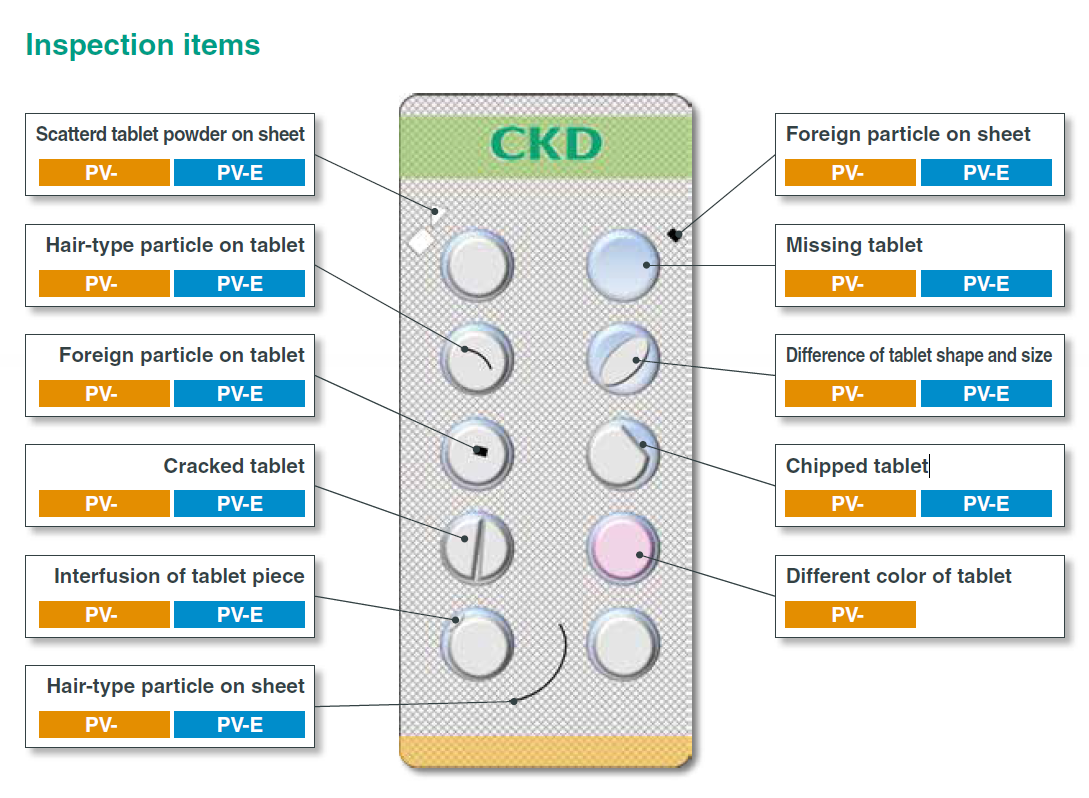

• Inspection machine (before and after sealing)

（4）Compact

The full length, 4350mm, with the full options
Able to fit in any space for exchanging an existing equipment
